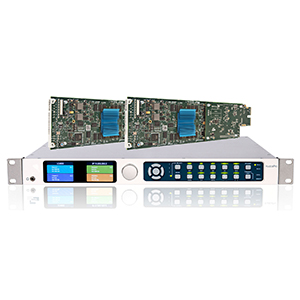

KudosPro IP

ブランド
Grass Valley
型番
KudosPro IP
品名
Video and Audio Processing for IP Systems

この商品について問い合わせる

Integrating international programming into your schedules has never been easier. With Grass Valley’s KudosPro range of converters, you’re guaranteed to find a converter to meet your application and your budget needs. Whether you need to frame rate or format convert, Grass Valley offers motion-compensated and motion-adaptive converters that ensure that the quality of your content is retained at every step in your workflow.

> 製品特長

Quad-channel SD/HD/3G up-, down- and crossconversion, and processing over dual 10 GbE IP links
Multiple transport types available for each processing channel including:
Compressed IP transport using SMPTE ST 2042 (VC2) low-latency high-quality encoding profile
Uncompressed video transport using either VSF TR-03 and TR-04 RTP (upgradeable to SMPTE ST 2110), or SMPTE ST 2022-6 encapsulation
PCM audio using TR-03 & AES67
SMPTE ST 291 metadata support via IETF standard “RTP Payload for Ancillary Data”
Supports unicast as well as IGMPv3 source specific multicast, allowing point to point operation or transmission in multicast groups
Supports configuration of Ethernet links for maximum signal transport using both SFPs, or for dual link mode to provide link redundancy as per SMPTE ST 2022-7
16-channel embedded audio processing for each video channel
Automatic aspect ratio conversion (AFD, VI, L23)
Powerful picture enhancement tools and clean-cut mode
Closed caption and timecode handling
Caption generator
Logo inserter, sidebar keyer and HDMI monitoring output
Easily integrate common broadcast processing tasks into IP workflows

> 製品仕様

Ethernet Signal
SFP+ Optical 2x 10G Ethernet
Conforms to IEEE 802.3ae – 10 GbE over fiber
SFP+ connected cable 2x 10G Ethernet
Conforms to IEEE 802.3ak – 10 GbE over twinaxial cables
Note: SFP type must be ordered in addition to the module.

Signal Inputs
4x SD/HD/3G serial digital with embedded audio
Input standards:
3 Gb/s SD-SDI, SMPTE ST 425 level A, level B
1.5 Gb/s HD-SDI SMPTE ST 292 / SMPTE ST 299
270 Mb/s SD-SDI SMPTE ST 259
Reference: 1x loop-through HDTV Trisync/SD Bi-sync (black & burst) SMPTE ST 240/SMPTE ST 274
Audio AES: 4x balanced AES inputs via 25-way D-Type
Audio Analog: 4x stereo analog inputs via 25-way D-Type

Signal Outputs
4 SD/HD/3G serial digital with embedded audio
Output standards:
3 Gb/s HD-SDI, SMPTE ST 425 level A, level B
1.5 Gb/s HD-SDI SMPTE ST 292 / SMPTE ST 299
270 Mb/s SD-SDI SMPTE ST 259
Audio AES: 4x balanced AES outputs via 25-way D-Type
Audio analog: 2x stereo analog outputs via 25-way D-Type

Input Standards
(Auto detect) 525, 625
720 50/59.94/60p
1080 50/59.94/60i
1080 50/59.94/60p (Levels A and B)
720/1080 23/24/25/29/30p
1080 23/24/25/29psf

Output Standards
525, 625
720 50/59.94/60p
1080 50/59.94/60i
1080 50/59.94/60p (Levels A and B)
720/1080 23/24/25/29/30p
1080 23/24/25/29psf

Conversion Functions
Modes: SD/HD/3G Upconversion, Downconversion, Crossconversion at the same frame rate

Manual or Automatic ARC
AFD: (SMPTE ST 2016), VI (RP186), WSS (L23)
SD input format: Normal 4:3, Anamorphic 16:9, Letterbox 14:9, Letterbox 16:9
SD output format: Normal 4:3, Anamorphic 16:9, Letterbox 14:9, Letterbox 16:9
Auto zoom: On/Off
Manual zoom: Zoom ±20%
Safe area marker: Off, 16:9, 4:3
Manual controls: size, aspect, pan, tilt
Wide range of ARC presets including 702 sample line mode

Audio Functions
Analog Audio:
Four pairs of analog inputs are individually available to any or all processing channels
Two groups (2 pairs) of analog output are separately assignable to any processing channel
Headroom +24 dBu; balanced connection
AES Audio:
Four AES audio inputs are individually available to any or all processing channels
Four AES audio outputs (48 kHz) are separately assignable to any processing channel
AES input is auto-detected as PCM (32-96 kHz) or non-PCM (48 kHz locked to relevant video input)
Embedded Audio:
Each processing channel includes 16-channel embedded audio processing
PCM audio processing includes channel level gain and delay compensation, as well as channel level routing/shuffle with audio phase inversion
Non-PCM processing features pair level routing and delay compensation
Dolby-E data is passed with a delay to match the video and with co-timed audio frame drop or repeat
Dolby-E:
Optional single channel Dolby-E passing in convert mode on SV2000-IQ
SV4000-IQ has option of single channel Dolby-E passing on two processing channels
Metadata
Closed caption CEA608 <> CEA708
Timecode conversions
WST/RDD8 conversion
SMPTE ST 2020 embed/de-embed

Enhancement
Advanced Horizontal Enhancement:
Frequency band selection (Low, Med, High)
4 preset enhancement levels (Low, Med, High, Super)
Custom H Gain and H Noise rejection levels
Advanced Vertical Enhancement:
Frequency band selection (Low, Med, High)
5 preset enhancement levels (Soft 2, Soft 1, Normal, Sharp 1, Sharp 2)
Horizontal Aperture:
5 preset H sharpness levels (Low 2, Low 1, Normal, High 1, High 2)
5 preset H detail levels (Soft 2, Soft 1, Normal, Sharp 1, Sharp 2)
Noise reduction: spatial, recursive

System
Pattern Off , Black, Ramp, Bars
Proc amp
Black Level: +100 to -100 mV (0) in 0.8 mV steps
Contrast: -6 dB to +6 dB (0) in 0.2 dB steps
Saturation: -6 dB to +6 dB (0) in 0.2 dB steps
Y Gamma: 0.4 to 1.7 (1) in 0.1 steps
Freeze: On/Off
Genlock: Reference lock, Input lock (same format), Follow input (same frame rate), Free run
Memories: 16 user memories
Legalizer
EDH support

Communications
Remote control via web interface and RollCall network (IP)

Power (Primary and Secondary)
Input voltage range: 100 – 240 VAC, 50/60 Hz 1.5A (max.) via three-pin IEC power socket

Mechanical
Temperature range: 0 to 45° C (32° to 113° F)operating
Cooling: Internal fan, side venting
Weight: Approximately 4.25 kg (9.4 lbs.)
Case type: 1 RU, rack mounting
Dimensions: 44 x 430 x 400 mm (1.73 x 16.9 x 15.7 in.) (HxWxD)
Headphones socket with volume control
GPIO: 8 available

> ORDERING INFORMATION

KPRO-IPMC210
KudosPro-IP-MC: Dual-channel video & audio processing unit with integrated IP interfacing module. Featuring motion compensated frame rate/format conversion, frame synchronization, ARC control, noise reduction, side-bar keying, logo insertion, CC, WST and timecode handling, picture enhancement tools, 16-channel audio processing inc gain, delay & shuffling. 10 GbE IP (SMPTE ST 2022-6, SMPTE ST 2110, TR-03, VC2), GPI, balanced AES and analog audio I/O. HDMI monitor output & dual PSUs.

KPRO-IPLC410
KudosPro-IP-LC: Quad channel video & audio processing unit with integrated IP interfacing module. Featuring linear frame rate/format conversion, frame synchronization, ARC control, noise reduction, side-bar keying, logo insertion, CC, WST and timecode handling, picture enhancement tools, 16-channel audio processing inc gain, delay & shuffling. 10 GbE IP (SMPTE ST 2022-6, SMPTE ST 2110, TR-03, VC2), GPI, balanced AES and analog audio I/O. HDMI monitor output & dual PSUs.

KPRO-IPSV410
KudosPro-IP-SV: Quad channel video & audio processing unit with integrated IP interfacing module. Featuring format conversion, frame synchronization, ARC control, noise reduction, side-bar keying, logo insertion, CC, WST and timecode handling, picture enhancement tools, 16-channel audio processing inc gain, delay & shuffling. 10 GbE IP (SMPTE ST 2022-6, SMPTE ST 2110, TR-03, VC2), GPI, balanced AES and analog audio I/O. HDMI monitor output & dual PSUs.
