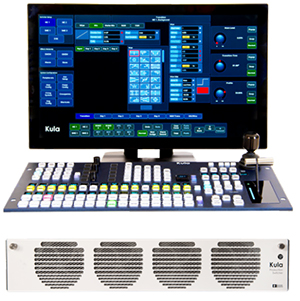

Kula 12G-SDI

ブランド
Grass Valley
型番
Kula 12G-SDI
品名
Kula 12G-SDI Production Switcher

この商品について問い合わせる

In a space-saving, cost-effective package, the 12G-SDI Kula switcher is ideal for a variety of production environments including live events (flyaway packs, OB vans) sports, houses of worship and conferences and events.

> 製品特長

• 1 M/E with 3 keyers
• 4K UHD functionality
• HD, 3G and 4K UHD in the same frame
• SDI connectivity for 12G sources and 3G sources
• 10x 12G-SDI inputs / 40x HD inputs
• Transparent configuration for 4K UHD productions
• FormatFusion3
• Internal ClipStore
• Easy operations in 4K UHD

> 製品仕様

TV Standards
11.88 Gb/s Video Standards (4K UHD)
SMPTE ST 2082-10
3840 x 2160p 50 Hz
3840 x 2160p 59.94 Hz
3840 x 2160p 60 Hz
2.97 Gb/s Video Standards (3G/1080p)
1080p59.94 SMPTE ST 424
1080p59.94 SMPTE ST 425/Level A
1080p59.94 SMPTE ST 425/Level B
1080p50 SMPTE ST 424
1080p50 SMPTE ST 425/Level A
1080p50 SMPTE ST 425/Level B
1.485 Gb/s Video Standards (HD)
1080i60 SMPTE ST 274(4), SMPTE ST 292(D)
1080i59.94 SMPTE ST 274(5), SMPTE ST 292(E)
1080i50 SMPTE ST 274(6), SMPTE ST 292(F)
1035i60 SMPTE ST 260, SMPTE ST 292(A)
1035i59.94 SMPTE ST 260, SMPTE ST 292(B)
1080PsF30
1080p29.97
1080PsF25
1080PsF24
1080PsF23.976
1080p30 SMPTE ST 274(7), SMPTE ST 292(G)
1080p29.97 SMPTE ST 274(8), SMPTE ST 292(H)
1080p25 SMPTE ST 274(9), SMPTE ST 292(I)
1080p24 SMPTE ST 274(10), SMPTE ST 292(J)
1080p23.976 SMPTE ST 274(11), SMPTE ST 292(K)
720p60 SMPTE ST 296(1), SMPTE ST 292(L)
720p59.94 SMPTE ST 296(2), SMPTE ST 292(M)
720p50 SMPTE ST 296(2), SMPTE ST 292(M)

Reference
Analog genlock high definition tri-level syncs signal or SD 1V blackburst

Frame
Video Signal Inputs
10x 12G-SDI (SMPTE ST 2082) single link BNC connectors
40x SD/HD/3G (270 Mb/s / 1.485 Gb/s / 2.97 Gb/s)
Serial digital interface: As REC601/SMPTE ST 292/SMPTE ST 424 via BNC connectors
Genlock reference: 2 off analog sync (loop A and B through)
Video Signal Outputs
3x 12G-SDI (SMPTE ST 2082) single link BNC connectors
14x HD/SD/1080p (270 Mb/s / 1.485 Gb/s / 2.97 Gb/s)
Serial digital interface: As REC601/SMPTE ST 292/SMPTE ST 424 via BNC connectors

Control Interfaces
Standard
44 GPI tally/GPO outputs: Assignable GPI/GPO isolated contact
closures via 2x 25-way D-Type. Assignable as GPI or GPO
10/100/1000base-T 3x RJ45 Ethernet connectors fixings
2 RS-422 control ports
2x USB

Power
Kula frame: Auto sensing 100-250 VAC power supply 50/60 Hz nominal. Two fully independent hot swappable PSU modules, with separate mains power feeds via 2 x 13A
IEC – 320- C14 socket
Consumption: <400W
Temp range: 5 to 40°C (41 to 104°F) noncondensing operating

Mechanical
2 RU
Height: 87 mm (3.42 in.)
Depth: 604.8 mm (23.81 in.)
Weight: Approx. 14 kg (30.3 lbs.)

> ORDERING INFORMATION

1 M/E UHD Kula 12G-SDI Switcher – 19
9679131
19-inch 1 M/E 16 Crosspoint Panel, 2 RU Frame with 1 12G-SDI, switchable to 2 HD M/Es
Frame Only
9679130
2 RU 12G-SDI Frame with 1 12G-SD M/E, switchable to 2 HD M/Es
