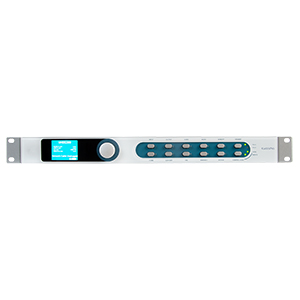

KudosPro UHD1200

ブランド
Grass Valley
型番
KudosPro UHD1200
品名
12G UHD Video & Audio Processor

この商品について問い合わせる

The KudosPro UHD1200 is a flexible 12G or quad-link 4K UHD processing unit including HDR and wide color gamut mapping, along with converting to or from 4K UHD and HDR/SDR. Such advanced processing allows re-purposing of existing or new assets, as well as covering all common video and audio processing tasks.

Applications
Repurpose existing HD content — upconvert for distribution over 4K UHD channels
Service existing HD channels — downconvert 4K UHD content for simulcast on mainstream HD services
Integrate HDR (PQ, HLG, S-Log3) signals into SDR workflows, translate between HDR standards, or map SDR signals for use in HDR productions
Cover color space requirements with BT709 and BT2020 translation features
4K UHD signal processing — synchronize, adjust and enhance, or process audio with the UHD1200’s comprehensive control features

> 製品特長

SD/HD/3G/4K UHD up-, down- and crossconversion with clean cut feature
Frame Synchronization including continuous output on input standard changes
HDR (PQ, HLG, S-Log3) and BT2020 wide color gamut support, along with video proc and powerful picture enhancement tools, including edge enhance and noise reduction
16-channel embedded audio processing and PCM/Dolby audio delay compensation
Metadata support including closed caption, WST, timecode and SMPTE ST 2020 handling
Easy to use control options inc. front panel with control lock, and remote via web interface and RollCall
Linear motion adaptive frame rate conversion available when up or down converting
Automatic aspect ratio conversion with signaling support (SMPTE ST 2016, L23 ETSI, L23 AFD, VI SMPTE, VI AFD)
Balanced AES and analog audio I/O
Support for fiber Tx and Rx via SFP
Dual PSU as standard

> 製品仕様

Signal Inputs
Serial digital 1x 75Ω SD/HD/3G/12Gb/s/4K UHD-1 serial digital with embedded audio
Serial digital 4x 75Ω SD/HD/3G/4K UHD-1 serial digital with embedded audio
Input standards:
12 Gb/s 4K UHD-1 single link to SMPTE ST 2082
4K UHD-1 Quad-link-SDI, SMPTE ST 203
3 Gb/s HD-SDI, SMPTE ST 425 level A, dual-link level B
1.5 Gb/s HD-SDI SMPTE ST 292/SMPTE ST 299
270 Mb/s SD-SDI SMPTE ST 259
Reference: 1x loop-through HDTV Trisync/SD Bi-sync (black & burst) SMPTE ST 240/SMPTE ST 274
Audio AES (option): up to 8x balanced AES inputs – via 25-way D-Type
Analog audio (option): 2x stereo analog inputs via 25-way D-Type

Signal Outputs
Serial digital 1x 75Ω SD/HD/3G/12Gb/s/4K UHD-1 serial digital with embedded audio
Serial digital 4x 75Ω SD/HD/3Gb/s/4K UHD-1 serial digital with embedded audio
Output standards:
12 Gb/s 4K UHD-1 single link to SMPTE ST 2082
4K UHD-1 Quad-link, SMPTE ST 2036
3 Gb/s HD-SDI, SMPTE ST 425 level A, dual-link level B
1.5 Gb/s HD-SDI SMPTE ST 292/SMPTE ST 299
270 Mb/s SD-SDI SMPTE ST 259
Audio AES (option): up to 8x balanced AES outputs – via 25-way D-Type
Analog audio (option): 2x stereo analog outputs via 25-way D-Type

Input Standards
(auto detect) 525, 625
720 50/59.94/60p
1080 50/59.94/60i
1080 50/59.94/60p (Levels A and B)
720/1080/2160 23/24/25/29.97/30p
1080 23/24/25/29.97/30psf, with film detection and processing
2160 50/59.94/60p (Levels A and B)

Output Standards
525, 625
720 50/59.94/60p
1080 50/59.94/60i
1080 50/59.94/60p (Levels A and B)
720/1080/2160 23/24/25/29.97/30p
1080 23/24/25/29.97psf, with film detection and processing
2160 50/59.94/60p (Levels A and B)

Video Functions
Upconversion, Downconversion, Crossconversion
Square division to/from 2SI conversion
SD/HD/3G to/from 4K UHD-1 Linear Standards Conversion
Noise Reduction
SDR to/from HDR (PQ, HLG, S-Log3)
Color space BT709 to/from BT2020

Manual or Automatic ARC
AFD (SMPTE 2016), VI (RP186), WSS (L23)
SD input format: Normal 4:3, Anamorphic 16:9, Letterbox 14:9, Letterbox 16:9
SD output format: Normal 4:3, Anamorphic 16:9, Letterbox 14:9, Letterbox 16:9
Auto zoom: On/Off
Manual zoom: Zoom ±20%
Safe area marker: Off, 16:9, 4:3
Manual controls: size, aspect, pan, tilt
Wide range of ARC presets including 702 sample line mode

Metadata
Closed caption CEA608 <> CEA708
Timecode conversions
WST/RDD8 conversion
SMPTE ST 2020 embed/de-embed

Audio Functions
Analog Audio (option):
Two pairs of analog inputs are individually available to the processing channel
Headroom +24 dBu; balanced connection
AES Audio (option):
AES audio is accessible via 8 bidirectional ports which can be configured as inputs or outputs
AES input is auto-detected as PCM (32-96 kHz) or non-PCM (48 kHz locked to relevant video input)
Embedded Audio:
16-channel embedded audio processing
PCM audio processing includes channel level gain and delay compensation, as well as channel level routing/shuffle with audio phase inversion
Non-PCM processing features pair level routing and delay compensation
System

Pattern Off , Black, Ramp, Bars
Proc amp
Black Level: +100 to -100 mV (0) in 0.8 mV steps
Contrast: -6 dB to +6 dB (0) in 0.2 dB steps
Saturation: -6 dB to +6 dB (0) in 0.2 dB steps
Y Gamma: 0.4 to 1.7 (1) in 0.1 steps
Freeze: On/Off
Genlock: Reference lock, Input lock (same format), Follow input (same frame rate), Free run
Memories: 16 user memories
Adjustable Legalizer
EDH support

Communications
Remote control via web interface and RollCall network (IP)

Power (Primary and Secondary)
Input voltage range: 100 – 240 VAC, 50/60 Hz 1.5A (max.) via three-pin IEC power socket

Mechanical
Temperature range: 0 to 45° C (32° to 113° F)operating
Cooling: Internal fan, side venting
Weight: Approximately 4.25 kg (9.4 lbs.)
Case type: 1 RU, rack mounting
Dimensions: 44 x 430 x 400 mm (1.7 x 16.9 x 15.7 in.) (HxWxD)

> ORDERING INFORMATION

6111121
UHD1200 Single-channel 4K UHD-1 video & audio processing unit with 12G SDI (BNC or fiber), remote or front panel control and Dual PSUs.

6111131
UHD1200 Single-channel 4K UHD-1 video & audio processing unit with 12G SDI (BNC or fiber), AES and analog audio I/O, remote or front panel control and Dual PSUs.

SFP Option 1/2
FC1-R2
Fiber SFP module — 2x Fiber Rx
FC1-HDBR2
HD-BNC SFP module — 2x Rx HD-BNC
FC1-13T2
Fiber SFP module — 2x Fiber Tx
FC1-HDBT2
HD-BNC SFP module — 2x Tx HD-BNC

SFP Option 3/4
FC1-R2-12G
Fiber SFP module — 2x 12G Fiber Rx
FC1-HDBR2-12
HD-BNC SFP module — 2x Rx HD-BNC — 12G
FC1-13T2-12G
Fiber SFP module — 2x 12G Fiber Tx
FC1-HDBT2-12
HD-BNC SFP module — 2x Tx HD-BNC — 12G
