HAD-3961

ブランド
Grass Valley
型番
HAD-3961
品名
Single/Dual 12G/3G/HD/SD-SDI Distribution Amplifier (DA) with Optional Fiber Connectivity

この商品について問い合わせる

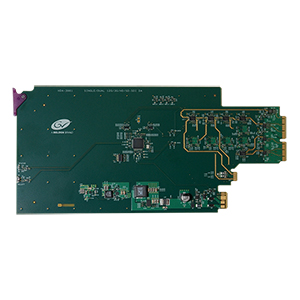

The Densité HDA-3961 provides single and dual channel distribution for 12G/3G/HD/SD-SDI signals with flexible routing of inputs to outputs. Flexible output selection enables the HDA-3961 to be used either as a single channel DA with up to 10 outputs, or in dual channel mode with up to five outputs per input. The HDA-3961 provides up to ten reclocked outputs with automatic equalization for up to 60 meters (197 feet) of cable using Belden 4794R at 12 Gb/s, and 100m (328 feet) at 3 Gb/s and up to 150 meters (492 feet) at 1.5 Gb/s using Belden 1694A cable.

> 製品特長

Single/dual 12G/3G/HD/SD-SDI inputs
Flexible selection of inputs allows single or dual channel operation
Supports bitrates up to 11.88 Gb/s
Automatic format detection and cable equalization
Up to 6 12G/3G/HD/SD-SDI BNC outputs on the HDA-3961-3SRP-2IN rear
Up to 10 12G/3G/HD/SD-SDI HD-BNC outputs on the HDA-3961-3SRP-HF rear
Optional fiber I/O on the HDA-3961-3SRP-HF rear

> 製品仕様

Electrical Inputs and Outputs
Physical:
8 BNC connectors: 2 In, 6 Out (HDA-3961-3SRP-2IN)
12 HD-BNC connectors: 2 In, 10 Out (HDA-3961-3SRP-HF)

SDI standards:
SMPTE ST 259-C (270 Mb/s)
SMPTE ST 292 (1.485, 1.485/1.001 Gb/s)
SMPTE ST 424 (2.970, 2.970/1.001 Gb/s)
SMPTE ST 2082-1:2015 (2.970, 2.970/1.001 Gb/s)

Cable length (Belden 1694A cable):
400m (1312 ft.) at 270 Mb/s
150m (492 ft.) at 1.485 Gb/s
100m (328 ft.) at 2.970 Gb/s

Cable length (Belden 4794R cable):
60m (197 ft.) at 11.88 Gb/s

Return loss:
>15 dB up to 1.5 GHz
>10 dB from 1.5 GHz to 3 GHz

Jitter (wideband): <0.2 UI p-p Rise/fall time:
Reclocker on:
<135 ps, 20% to 80%, for HD and 3G
400-800 ps, 20% to 80%, for SD
Reclocker off:
<135 ps for all formats (3G, HD, SD)

Processing Performance
Processing delay: 7 ns typical

Electrical
Power: less than 12.5W max

> ORDERING INFORMATION

Densité 3 Frame
HDA-3961 Single/dual 12G SDI distribution amplifier with EQ and reclocking
HDA-3961-3SRP-2IN Single rear panel with single 1×6 or dual 1×3 BNCs
HDA-3961-3SRP-HF Single rear panel with single 1×10 or dual 1×5 HD-BNC with fiber option support

Fiber Options
SFP-U-R-LC 12G Single RX Fiber with LC/PC
SFP-U-RR-LC 12G Dual Rx Fiber with LC/PC
